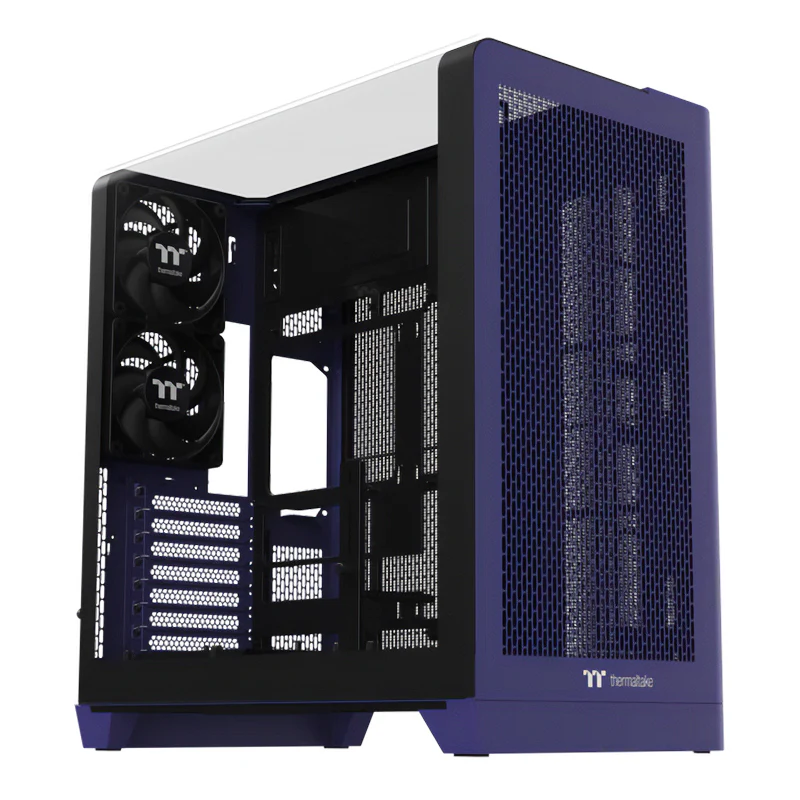

Thermaltake View 390 Air Mid Tower ATX Case - Dusk Edition (CA-11F-00MNWN-00)

Case Type

Mid Tower

Dimensions

503 x 287 x 485mm

(19.80 x 11.30 x 19.1inch)

Side Panel

4mm Tempered Glass x 1

Color

Black

Material

SPCC

Cooling System

Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2

Drive Bays

2 x 3.5 € , 1 x 2.5 € or 3 x 2.5 €

Expansion Slots

7 (Rotatable Patented Design)

Motherboard

6.7 € x 6.7 € (Mini ITX), 9.6 € x 9.6 € (Micro ATX), 12 € x 9.6 € (ATX)

Hidden-Connector Motherboard

9.6 € x 9.6 € (Micro ATX), 12 € x 9.6 € (ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front:

3 x 120mm

2 x 140mm

2 x 200mm

Right:

3 x 120mm

Rear:

2 x 120mm

Bottom:

3 x 120mm

Radiator Support

Front Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

Clearance

CPU cooler height limitation: 160mm

VGA length limitation:

390mm with Radiator /420mm without Radiator

PSU length limitation: 200mm (with 2.5" SSD)

260mm (without 2.5" SSD)
