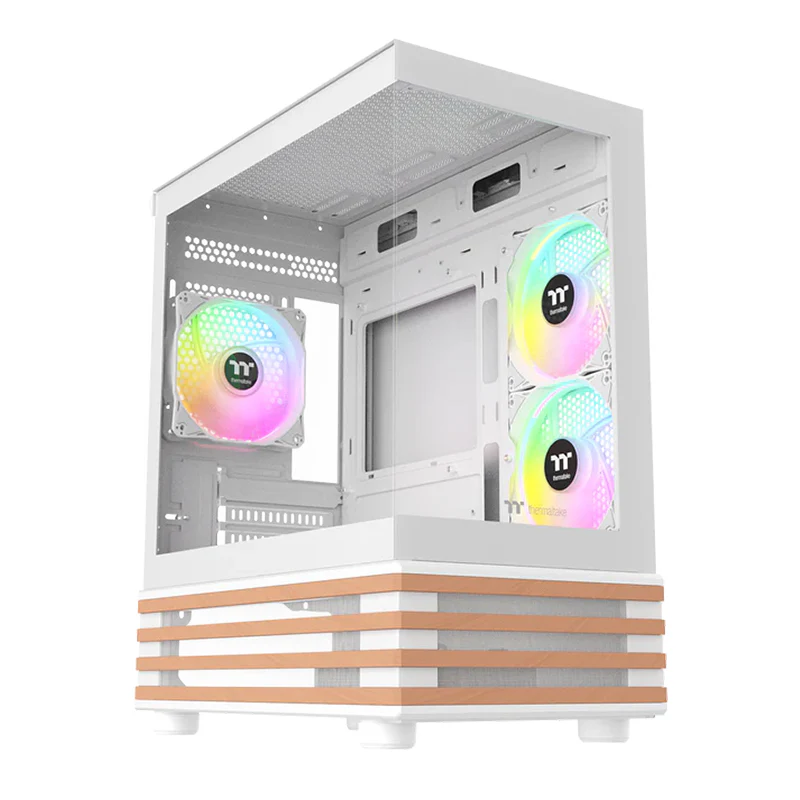

Thermaltake View 170 WS ARGB TG mATX Case - Snow (CA-1Z4-00M6WN-WS)

Case Type

Micro Case

Dimensions

438 x 214 x 381.4 mm

(17.24 x 8.43 x 15.02 inch)

Side Panel

3mm Tempered Glass x 2

Color

Snow

Material

SPCC

Cooling System

Right(intake):

120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Expansion Slots

4

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)

I/O Port

USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

2 x 120mm, 1 x 120mm

Rear: 1 x 120mm

Power Cover:

2 x 120mm, 1 x 120mm

Radiator Support

Top:

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

Clearance

CPU cooler max height: 160mm

VGA max length: 340mm

PSU max length: 180mm
