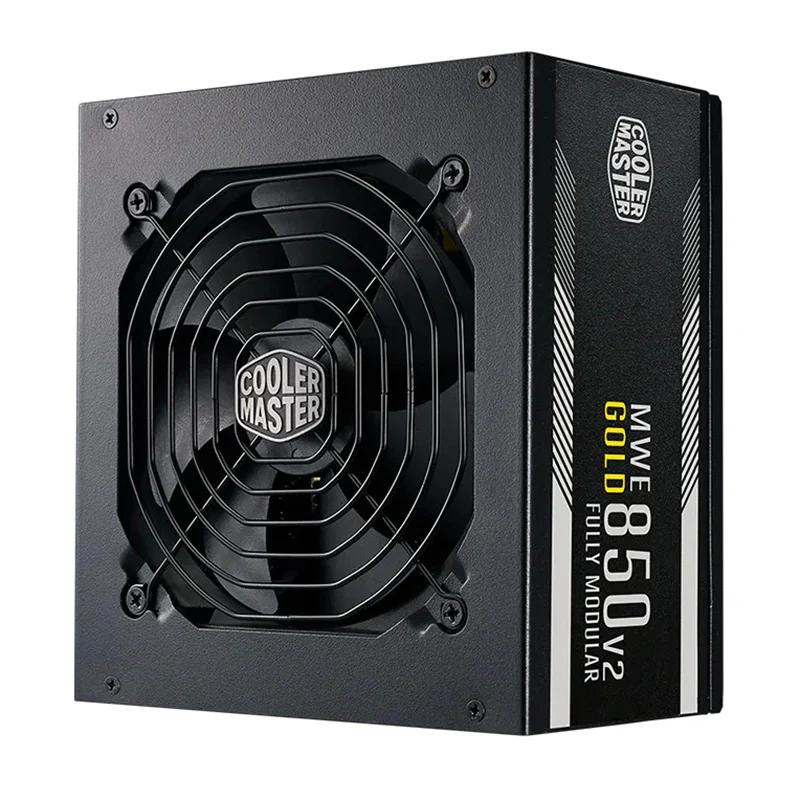

Cooler Master 850W MWE V2 80+ Gold Fully Modular PCIe 5.1 ATX 3.1 Power Supply (MPE-8501-AFAAG-3EAU)
NOTE: This PSU has limited 8-pin headers. If both 12V 2x6 and 2x EPS 4+4 cables are in use, PCIe 6+2 cables cannot be connected.
SPECIFICATIONS:
|
ATX Version |
ATX 12V Ver. 3.1 |
|
PFC |
Active PFC |
|
Input Voltage |
100-240V |
|
Input Current |
12-6A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L x W x H) |
160 x 150 x 86 mm |
|
Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Efficiency |
90% @ Typical Load |
|
80 PLUS Rating |
80 PLUS Gold |
|
ErP 2014 Lot 3 |
Yes |
|
Operating Temperature |
0-50 °C |
|
Power Good Signal |
100 - 150 ms |
|
Hold Up Time |
16ms |
|
MTBF |
>100,000 Hours |
|
Protections |
UVP / OVP / OPP / OTP / SCP / OCP |
|
Regulatory |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
|

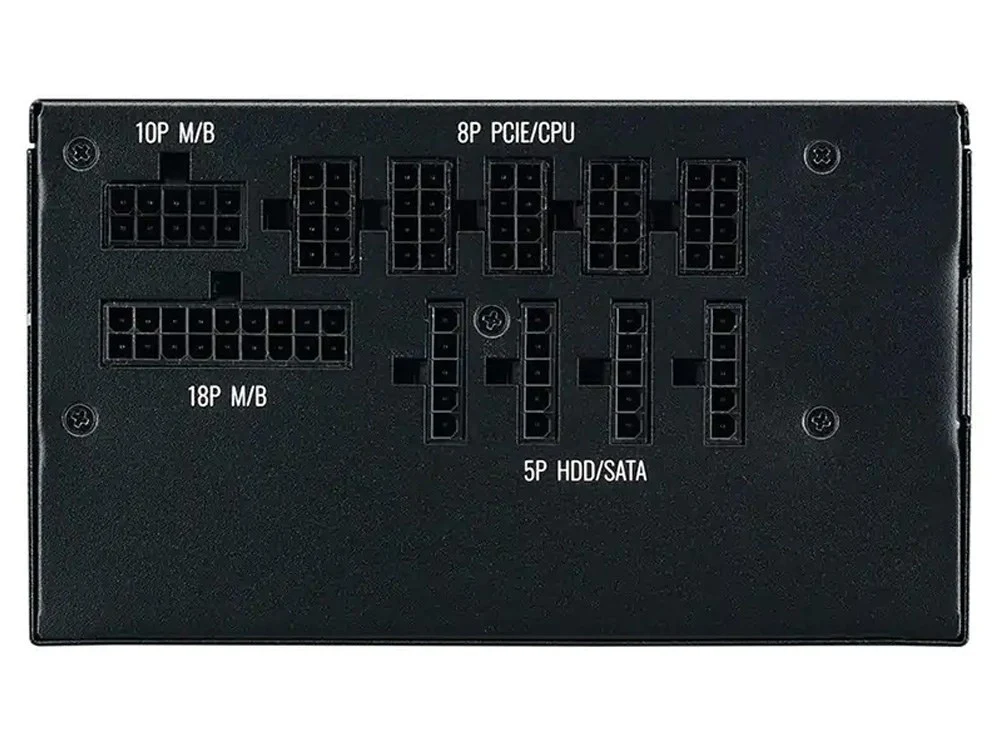

ATX 24 Pin Connectors |
1 |
|
EPS 4+4 Pin Connectors |
1 |
|
EPS 8 Pin Connector |
1 |
|
SATA Connectors |
12 |
|
Peripheral 4 Pin Connectors |
4 |
|
PCI-e 6+2 Pin Connectors |
4 |
|
12V-2x6 Connectors |
1 (1 to 3) |
|
Series |
MWE Gold Series |
|
Modular |
Fully Modular |
|
Form Factor |
ATX |
|
80 Plus Efficiency |
Gold |
|
Watts |
850W |
