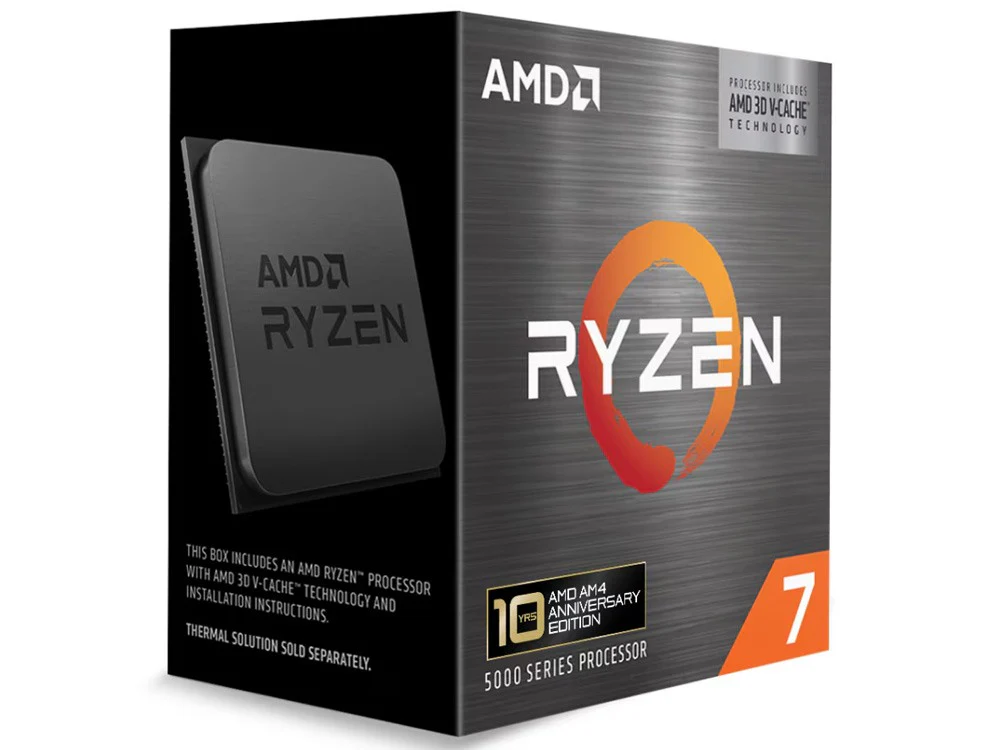

AMD Ryzen 7 5800X3D 8 Core AM4 4.5GHz CPU Processor (100-100000651POF)

Name

AMD Ryzen „¢ 7 5800X3D

Family

Ryzen

Series

Ryzen 5000 Series

Form Factor

Desktops , Boxed Processor

Former Codename

Vermeer

Processor Architecture

Zen 3

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 4.5 GHz

Base Clock

3.4 GHz

L1 Cache

512 KB

L2 Cache

4 MB

L3 Cache

96 MB

Default TDP

105W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Processor Technology for I/O Die

12nm (Globalfoundries)

CPU Compute Die (CCD) Size

74mm ²

I/O Die (IOD) Size

125mm ²

Package Die Count

2

CPU Socket

AM4

Supporting Chipsets

X570 , X470 , B550 , B450 , A520

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

90 °C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

CONNECTIVITY

Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 3.2 Gen 1 (5Gbps)

0

Native USB 2.0 (480Mbps)

0

Native SATA Ports

2

PCI Express ® Version

PCIe ® 4.0

Native PCIe ® Lanes (Total/Usable)

24 , 20

Additional Usable PCIe Lanes from Motherboard

X57016x Gen 4

X4702x Gen 3, 8x Gen 2

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1RDDR4-3200

2x2RDDR4-3200

4x1RDDR4-2933

4x2RDDR4-2667

ECC Support

Yes (Requires mobo support)

GRAPHICS CAPABILITIES

Graphics Model

Discrete Graphics Card Required

KEY FEATURES

Supported Technologies

AMD 3D V-Cache „¢ Technology , Windows ® 11 Gaming , AMD Ryzen „¢ VR-Ready Premium
